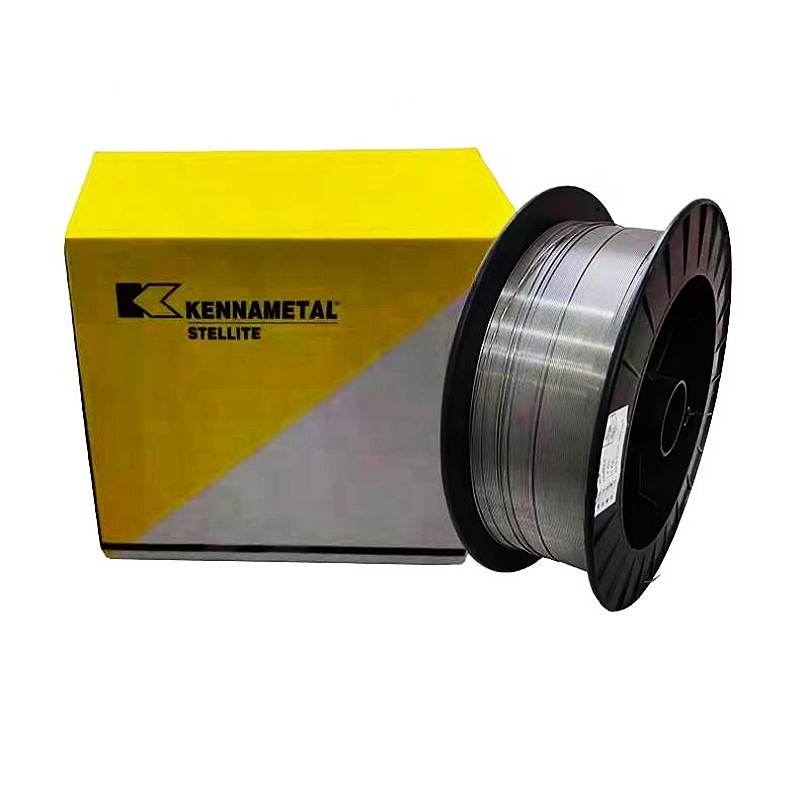

Cobalt Based Welding Wires

cobalt based welding wires

AWS A5.21RCoCr-B stellite 12 mig tig welding wires used in Wood sawtooth,

GB/T 29713 RCoCr-B

YB/T 5092 H112

AWS A5.21 RCoCr-B

ISO 14343-B-RCoCr-B

Description:

ND112 cobalt-based surfacing tig welding wires in the Co-Cr-W surfacing alloy with moderate hardness, wear resistance than ND111 good, but slightly less plastic, with good corrosion resistance, heat and wear resistance, about 650 ℃ high temperature Still maintain these characteristics.

Use:

Mainly used for high temperature, high pressure valves, internal combustion engine valves, high pressure pump sleeve and liner sleeve, hot roll hole type welding

Deposited metal Chemical composition (%)

project (guarantee value):

C 1.2-1.7

Mn ≤1.0

Si 0.4-2.0

Cr 26-32

W 7.0-9.5

Fe 2.0

Co margin

S -

Cu -

Reference current (AC, DC-):

diameter(mm)   Welding current(A)

1.6                       50~100

2.0                       100~200

2.5                       200~300

3.2                       300~400

Surfacing layer hardness HRC: 45-50

Key attributes:

material: cobalt base alloy

operating temperature: 500-800

welding current: standard

customized support: OEM, ODM, OBM

place of origin: Hebei, China

model number: AWS A5.21 RCoCr-B

brand name: Naidi

application: wood saw tooth, hot rolling finishing roller pass

operating current: standard

warranty: 3year

Product name: AWS A5.21RCoCr-B stellite 12 mig tig welding wire rod

hrc: 45-50

Package: 5KG/PVC BOX 15kg/spool

temperature: 500-800 centidegree

tensile of strenght: 840mpa

Standard: aws ERCOCR-B S112

Feature: good heat and wear resistance

Usages: valves, internal combustion engine valves

OEM: Accept OEM

Shape: mig

Packaging and delivery:

Selling Units: Single item

Single package size: 50X50X30 cm

Single gross weight: 17.000 kg

Lead time:

Quantity 1 - 450 kilograms Lead time 7 days

Quantity > 450 kilograms Lead time To be

Precautions:

1. Protection of gas: the use of pure Ar; flow: current in the 100 ~ 200A 9 ~ 14L / min, the current in the 200 ~ 300A 14 ~ 18L / min.

2. Tungsten pole extension length: 3 ~ 5mm; arc length: 1 ~ 3mm.

3. Wind speed limit of ≤ 1.0m / s; Proposed in the welding area on the back of the argon protection.

4. In the welding, the welding line energy directly affects the size of the weld metal mechanical properties and crack resistance, etc., should be more attention.

5. The welding parts of the rust layer, moisture, oil, dust, etc. in addition to the net.The above recommend ations are for reference only, in the specific operation of the prevailing situation prevail. If necessary, first process evaluation and then determine the welding program.
